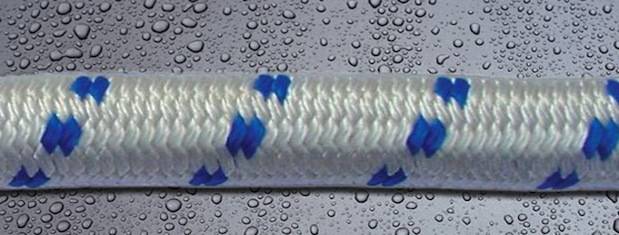

Lankoforce®HS with Dyneema® Jacket

Home
Products
Ropes
Lankoforce®HS with Dyneema® Jacket

Lankoforce®HS is a new presentation of the Lankoforce® line. With a 12 braids Lankoforce® core and three types of coatings at choice it positions itself as the ideal option in applications where a high breaking load, low weight and high resistance to abrasion are essential.

The Dyneema® jacket has excellent abrasion resistance as well as floating properties.

Diameter (mm)	Weight (g/m)	MBF (kN)	MBF (tf)
14	110	105	10,7
16	153	149	15,2
18	205	200	20,4
20	237	267	27,2
22	286	332	33,9
24	324	409	41,7
26	398	492	50,2
28	460	583	59,5
30	526	670	68,4
32	611	767	78,3
34	696	863	88,1
36	776	970	99,0
38	852	1084	111
40	911	1177	120
42	978	1303	133
44	1156	1544	158
48	1380	1782	182
50	1408	1923	196
52	1570	2141	218
56	1840	2283	233
60	2095	2635	269
64	2360	2983	304
68	2730	3508	358
72	3050	3938	402

Properties

MaterialCore: Dyneema® - Jacket: Dyneema® Chemical resistanceGood Specific gravity0.98 Breaking load (wet)100% Abrasion resistanceExcellent UV resistanceExcellent Water absorption0% Construction12 strands braided with jacket Melting pointCore: ± 147 ºC - Jacket: ± 147 ºC TCLL value100 %ColourWhite MarkersBlue

Applications

Bottom Trawling

Flyline

Lifeline

Ripline

Trawl Warps

Pelagic Trawling

Frame Ropes

Round Straps

Trawl Warps
